Does the Revive require a vent or a permanent water line?

No vent is required. Filling is done via a drawer; a water line is not mandatory. It is essential to respect the fresh air intake under the unit (16 sq. in.) for stable flames.

Does the Revive actually provide heat?

Yes, it features a fan-forced heater. You can use it in ambiance mode (flame only) or flame + heat depending on the season.

What are the required framing dimensions?

Provide a minimum of 25-1/4″ (W) × 25″ (H) × 12″ (D), with clearances for air circulation at the back and under the unit.

What standards apply in Canada?

The Revive is cULus listed and complies with UL 2021 / CSA C22.2 No.46 standards. The power supply must comply with the Canadian Electrical Code; a GFCI is required if installed in a bathroom.

Dimplex Optimyst Revive – 25″ Water Vapor Insert

Noréa Foyers Grand Montréal Showrooms : South Shore (Longueuil) and Montreal (Saint-Laurent)

Dimplex Optimyst Revive – 25″ Water Vapor Insert

Type	Electric

Type	Fireplaces

Brand	Dimplex
Specifications	Water Vapor Electric Fireplace (Optimyst) — Insert
Model	Optimyst Revive 25″ (ABN15-RGB-AM) — Material No. 500003863
Energy	120 V — 1,250 W · 10.42 A
Heat	Fan-forced — flame only / flame + heat
Dimensions	25-1/4″ × 24-15/16″ × 12-13/16″ (view 22-1/4″ × 11-15/16″)
Min. Framing	25-1/4″ × 25″ × 12″
Fresh Air	16 sq. in. (under unit; increase if grille used)
Approvals	cULus (E71416) · UL 2021 / CSA C22.2 No.46

The Dimplex Optimyst Revive is a water vapor insert that breathes new life into an unused fireplace without gas or venting. Its Optimyst technology (water mist + LED) creates a realistic 3D flame, cool to the touch; the removable drawer makes filling easy, and the integrated heater provides immediate comfort. Designed to fit into an existing hearth or a new enclosure, it is controlled via remote control and the Flame Connect app.

Dimplex Optimyst Revive – Key Features

3D Optimyst Flame: striking “flames + smoke” effect, without hot glass.
Ready-to-install insert: suitable for existing fireplaces or a new frame.
Water drawer: simple filling; integrated overflow sensor.
Heating: fan-forced with Flame only or Flame + heat modes.
Controls: Flame Connect app, remote control, and in-drawer controls.
Fresh air required: 16 sq. in. under the unit for optimal flames.

Dimplex Optimyst Revive – Performance & Comfort

Power supply: 120 V, 1,250 W, 10.42 A.
Cool surfaces: increased safety for children and pets.
Adjustments: adjustable flame height and sound volume.

Installation & Compliance (Quebec)

Type: Optimyst Revive electric insert (water vapor). No venting required.
Minimum opening (W × H × D): 25-1/4″ × 25″ × 12″; clear the back and bottom for air circulation.
Fresh air: min. 16 sq. in. under the unit; increase the free area if a grille covers the opening.
Electrical: 120 V circuit; comply with the Canadian Electrical Code (GFCI if in bathroom).
Approvals: cULus (E71416) — complies with UL 2021 / CSA C22.2 No.46.

Maintenance & Warranty

Regular: filling the drawer, periodic cleaning of nozzles/filters; keep air intakes unobstructed.
Warranty: 2 years on electrical components (manufacturer).

Specification Tables — Dimplex Optimyst Revive

Model	Technology / Usage	Power Supply (V/W/A)	Heating	Product Dimensions (W × H × D)	Viewing Opening (W × H)	Minimum Opening (W × H × D)	Fresh Air Required
ABN15-RGB-AM (Optimyst Revive 25″)	Optimyst Water Vapor — insert for existing hearth or built-in	120 V / 1,250 W / 10.42 A	Fan-forced — flame only or flame + heat	25-1/4″ × 24-15/16″ × 12-13/16″	22-1/4″ × 11-15/16″	25-1/4″ × 25″ × 12″	16 sq. in. (increase if grille used)

Visit our showroom to see the Optimyst effect, validate your hearth opening, the 16 sq. in. fresh air requirement, and your media wall integration. We offer turnkey quotes (unit, framing, power supply).

Montreal & North Shore — 950 Bégin, Ville St-Laurent QC H4M 2N5 — 514-254-4131
South Shore — 4175 ch. Chambly, Saint-Hubert QC J3Y 3M5 — 450-445-0041

Request a Quote

City

Vous êtes?

Message

Envoyez 1 à 2 photos pour mieux visualiser votre projet.

Je préfère être joint

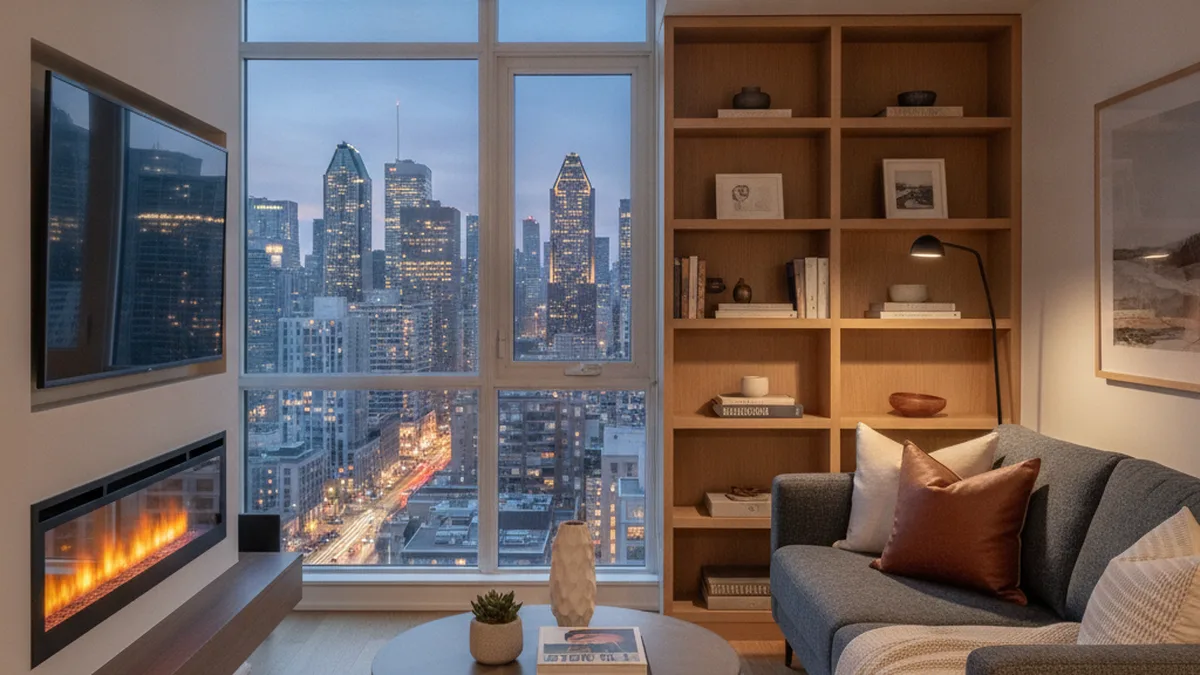

Linear electric fireplace in a downtown Montreal condo

Electric fireplace for condos in Montreal: the ventless solution

Dimplex Optimyst Revive (ABN15-RGB-AM): water vapor insert with 3D flame, fan-forced heating 120 V/1,250 W, fill drawer, 16 sq. in. fresh air under the unit, Flame Connect app. Pro installation by Noréa Foyers Grand Montréal.

Le Flare See Through 45 peut-il être installé sous un téléviseur ?

Oui, lorsque l’installation respecte le manuel et la gestion de chaleur Cool Touch Wall, qui permet de réduire la chaleur en façade pour abaisser le téléviseur plus près du foyer. Les schémas de montage TV et exigences de rejets/chaleur sont détaillés par Flare; toujours suivre le manuel d’installation et la configuration de heat-release recommandée.

Quel type de ventilation est requis ?

Le ST-45 est un foyer à évent direct (système coaxial scellé). La fiche technique liste un raccord 4×6 en configuration naturelle, et 3×5 avec power vent. Le manuel couvre les parcours, terminaisons horizontales/verticales et les dégagements au conduit. Un installateur qualifié doit valider le tracé sur place.

Quelle est la puissance et l’efficacité énergétique ?

La puissance d’entrée maximale est de 36 000 BTU/h en gaz naturel (GN) et 28 000 BTU/h en propane (PL). Le fabricant annonce une efficacité jusqu’à 82 % (GN) / 83 % (PL). Les performances réelles varient selon la configuration, le réglage et la qualité d’évacuation.

Quelles garanties et certifications s’appliquent au Québec ?

Flare indique une certification CSA pour l’installation en Amérique du Nord. La garantie prévoit 18 mois sur l’électronique, 5 ans sur les vitrages (bris thermique) et 10 ans limités sur la boîte foyère et les brûleurs. Au Québec, l’installation du gaz doit respecter le Code CSA B149.1 et le manuel du fabricant.
